Flow packing machine
Home > Products > Flow packing machine > Automatic instant noodle packing machine

Noodle Packaging Machine Description

1. Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.
2. Interface features easy and quick setting and operation.
3. Self-failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature-independent PID control, more suitable for packaging different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting, and technical upgrades.

noodle packing machine

Instant Noodle Packing Machine Application

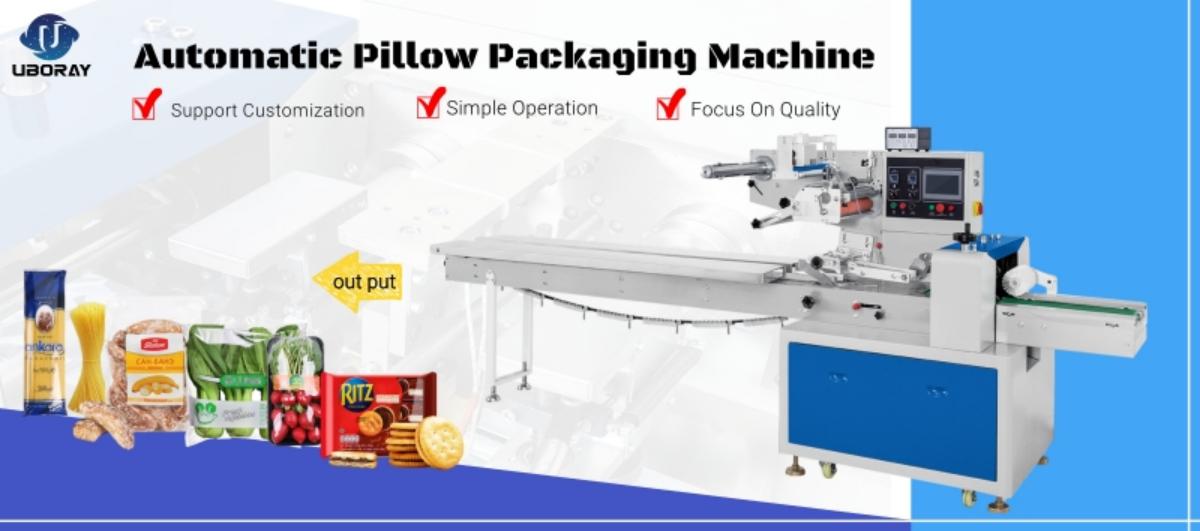

Uboray Automatic flow packing machine is a widely used packing machine. Suitable for all kinds of product packaging. Including medical supplies, vegetables and meat, baked bread, snacks and candy, daily necessities, hardware accessories, etc.

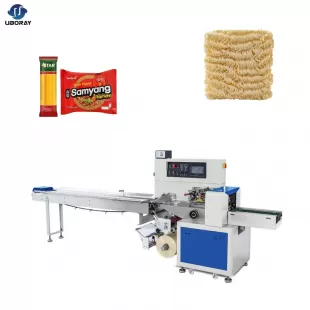

Automatic instant noodle packing machine


Model
UB-250
UB-350
UB-450
UB-600
Film width
Max.250mm
Max.350mm
Max.450mm
Max.600mm
Bag length
65-280mm
65-330mm
150-450mm
160-500mm
Bag width
30-110 mm
50-160 mm
50-180 mm
100-280 mm
Product Height
Max.55mm
Max.60mm
Max.75mm
Max.110mm
Power
220V/380V/50/60 HZ
Packing speed
30-230bag/min
Powder
2.0KW
2.2KW
3.0KW
4.0KW
Machine Weight
480KG
560KG
650KG
720KG
Dimensions (mm)
4030*770*1420
4030*770*1420
4030*970*1500
4030*1070*1500
Optional Devices
1.Lateral feed device, 2.Straight feed device, 3.Belt material conveyor,
4.End sealing auxiliary conveyor, 5.Auxiliary material feeding device, 6.Material cut prevent device,7.Perforating device, 8.Angle folding device, 9.Date Printer, 10.Labelling machine



Bag type
