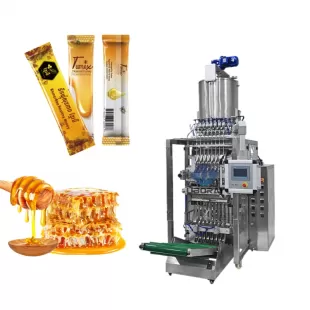

Hot Sell Automatic Multi Lane Honey Packing Machine

our advantages!

Top Manufacturer Of Honey Packing Machine Export More Than 40 Countries

30 Over Years Experience In Honey Packing Machine

Professional Honey Packing Machine Manufacturer, Easy Operation& Factory Price Inquire!

Honey Packing Machine Made In China CE/ISO/TUV Certifications

Multi Lane Honey Packing Machine Description

1. Multi lanes honey machines can produce multi lanes bags at the same time.

2. Machine main function: automatic split film at the right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3. Other functions: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step, etc.
4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
5. High-precision photocell sensor for auto-tracking the eye mark printing on the film roll, so cut each bag at a precise position.
6. PLC controller, high function and control the whole machine’s work steps.

Multi Lane Honey Packaging Machine Application

This packaging machine is suitable for all kinds of paste, viscous liquid packaging, such as ketchup, jam, chili sauce, honey, pizza sauce, peanut butter, tartar sauce, chocolate sauce, chili sauce, cream, liquid butter, juice, shower gel, shampoo, etc.

Hot Sell Automatic Multi Lane Honey Packing Machine


Model
UB-4L
UB-6L
UB-8L
UB-12L
Film width&Thickness
Max.480mm,
0.07-0.10mm
Max.680mm,
0.07-0.10mm
Max.800mm,
0.07-0.10mm
Max.900mm,
0.07-0.10mm
Packing speed
30-50bag/min/lane
Air consumption
0.65mpa
Cutting type
Straight cutting, Zig zag cutting, Round cutting, Special cutting
Powder
2.0KW
2.2KW
3.0KW
4.0KW
Machine Weight
400KG
480KG
550KG
690KG
Dimensions (mm)
1100(L)*1080(W)*2100(H)
1100(L)*1180(W)*2100(H)
1100(L)*1200(W)*2100(H)
1100(L)*1280(W)*2180(H)



Bag type
